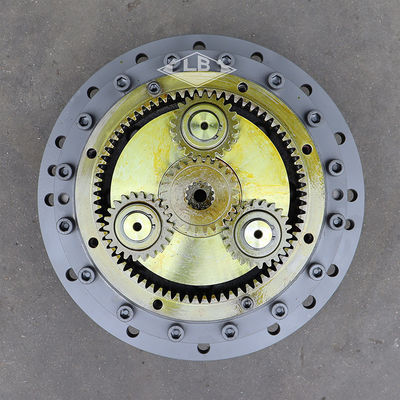

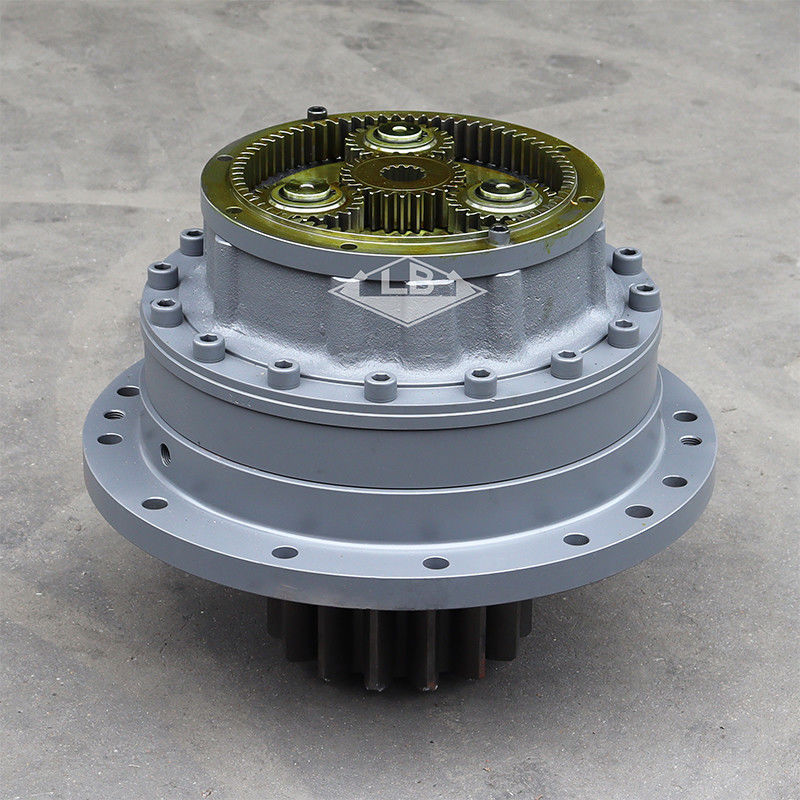

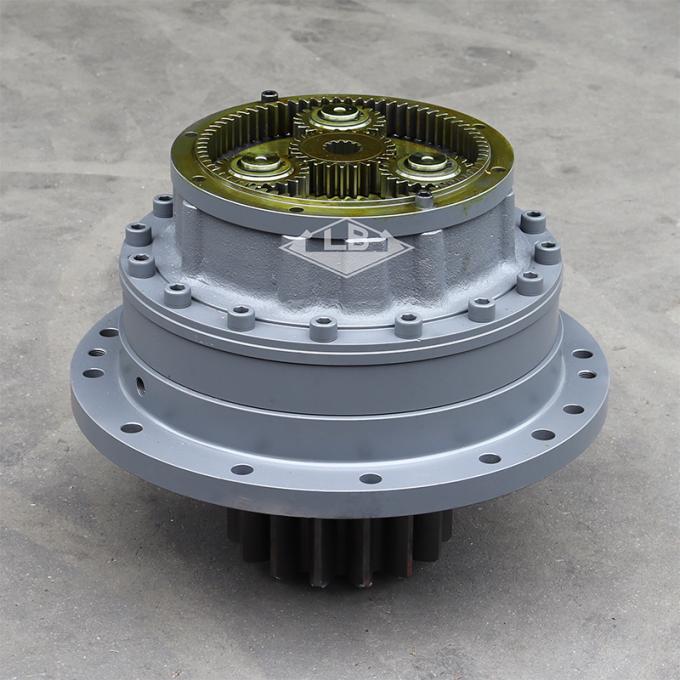

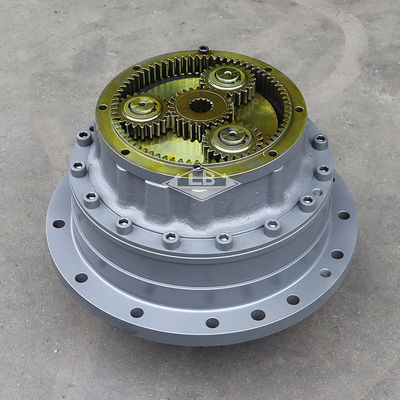

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | VOE14503783 swing drive gearbox,VOE14542163 swing drive gearbox,EC240 swing reduction gearbox |
||
|---|---|---|---|
Product Description
VOLVO EC240 swing reduction gearbox VOE14503783 VOE14542163 VOE7118-34100 EC240 swing gearbox
PRODUCT PARAMETERS
| Part name | EC240 swing gearbox | |||||
| Equipment | Apply to VOLVO EXCAVATOR | |||||
| Part no. | VOE14503783 VOE14542163 VOE7118-34100 | |||||
| NO.1 sun gear spline teeth | 14 splines | |||||
| Swing pinion shaft teeth | 15T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 298KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group Swing gearbox:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14542163 | [1] | Gearbox | ||
| 1. | VOE14518703 | [1] | Carrier | |
| 2. | SA1036-00530 | [1] | Crankshaft | |
| 3. | SA1036-00550 | [3] | Planetary Gear | |
| 4. | SA1036-00610 | [3] | Pin | |
| 5. | SA7118-34231 | [3] | Pin | |
| 6. | SA7118-34260 | [3] | Bushing | |
| 7. | SA1036-00620 | [6] | Washer | |
| 8. | SA9325-10012 | [3] | Spring pin | |
| 9. | VOE14640028 | [1] | Bearing | |
| 10. | SA1036-00710 | [1] | Bearing | |
| 11. | SA1036-00630 | [1] | Knob | |
| 12. | VOE14558605 | [1] | Seal | SER NO 10001-13402 SER NO 80001-81085 |
| VOE14558605 | [1] | Seal | SER NO 13403- SER NO 81086- | |
| 13. | SA7118-01560 | [1] | Plate | |
| 14. | SA7114-12590 | [4] | Screw | |
| 15. | VOE14504206 | [1] | Gear | |
| 16. | SA1036-00700 | [4] | Pin | |
| 17. | SA7118-34340 | [1] | Casing | |
| 18. | VOE14510986 | [1] | Sun gear | |
| 19. | VOE984369 | [16] | Hex. socket screw | |
| 20. | VOE14550896 | [1] | Carrier | |
| 21. | SA7118-34410 | [1] | Carrier | |
| 22. | SA7118-34420 | [3] | Planetary Gear | |
| 23. | VOE14550897 | [3] | Pin | |
| 24. | SA7118-34440 | [3] | Needle bearing | |
| 25. | SA7118-34450 | [3] | Washer | |
| 26. | SA7118-34460 | [3] | Washer | |
| 27. | SA9541-01085 | [3] | Retaining ring | |
| 28. | SA9325-08010 | [3] | Spring pin | |
| 29. | SA7118-34470 | [1] | Gear | |
| 30. | SA7118-34480 | [1] | Washer | |
| 31. | SA7118-34490 | [1] | Sun gear | |
| 32. | VOE984354 | [8] | Hex. socket screw | |
| 33. | VOE14514384 | [1] | Pipe | SER NO 10001-12701 SER NO 30001-30199 |
| VOE14540597 | [1] | Pipe | SER NO 12702- SER NO 30200- | |
| 34. | SA1012-01500 | [1] | Valve | |
| 35. | [1] | Casing | ||
| 36. | SA9541-01085 | [1] | Retaining ring | |
| 37. | VOE949329 | [1] | Gasket | |
| 100. | VOE14526215 | [1] | Overhaul kit | |
| 200. | VOE14627726 | [1] | Housing | inc 15,16,35 |
