JRC0007 JCB220 JS205 JS200 Swing Motor Gearbox JCB220 Swing Reduction Gear
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | JRC0007 JCB220 swing motor gearbox,JS205 JS200 swing motor gearbox,JCB220 swing reduction gear |
||
|---|---|---|---|
Product Description

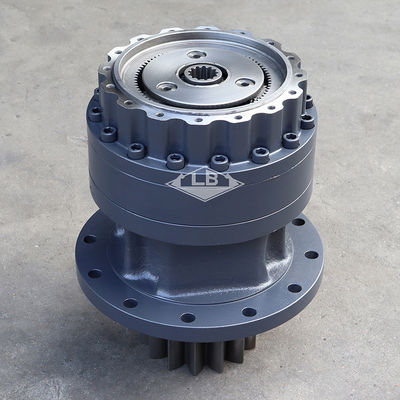

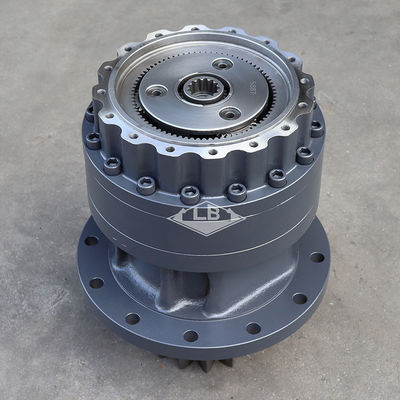

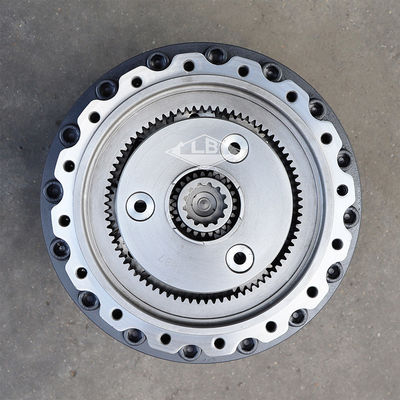

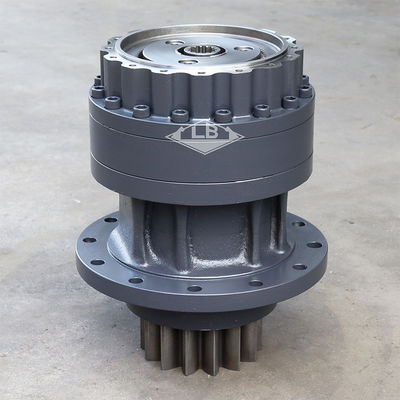

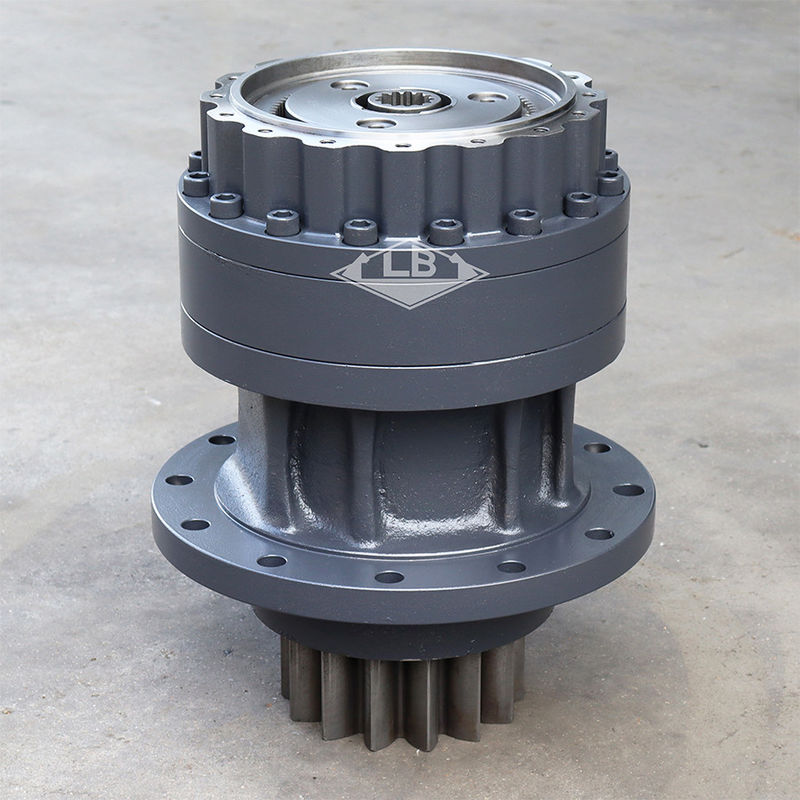

JCB220 swing reduction gear JRC0007 JCB220 JS205 JS200 swing gearbox
PRODUCT PARAMETERS
| Part name | JCB220 JS200 JS205 Swing gearbox | |||||
| Equipment | Apply to JCB EXCAVATOR | |||||
| Part no. | JRC0007 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 198 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments | |
|---|---|---|---|---|---|
| A. | JRC0007 | [1] | Gearbox swing | ||
| 1. | 05/903860 | [1] | Gear reduction assembly | ||
| 2. | 05/902010 | [2] | O Ring | ||
| 3. | 05/903862 | [1] | Ring Toothed | ||
| 4. | 05/903863 | [1] | Gear Sun | ||
| 5. | 05/903864 | [1] | Cover | ||
| 5A. | 05/903865 | [1] | Ring Toothed | ||
| 6. | 05/903866 | [1] | Gear Reduction Assembly | ||
| 7. | 05/903867 | [1] | Gear Sun | ||
| 8. | 05/903868 | [16] | Screw M16 x 120mm | ||
| 10. | 05/903873 | [1] | Gear output assembly | ||
| 10-1. | 05/903869 | [1] | Shaft pinion 14 teeth | ||
| 10-2. | 05/903870 | [1] | Spacer | ||
| 10-3. | 05/903871 | [1] | Ring | ||
| 10-4. | 05/903872 | [1] | Bearing | ||
| 10-6. | 05/903874 | [1] | Nut | ||
| 10-7. | 05/903875 | [1] | Bearing | ||
| 10-8. | 05/903876 | [1] | Seal ring 100 x 130 x 12mm | ||
| 10-8. | 333/C7880 | [1] | Seal 100x140x13 | LARGER SIZE | |
| 10-9. | 05/903877 | [1] | Housing | ||
| 11. | 'See Remark' | Gauge,oil level see page E2-7-3,Swing motor | |||
