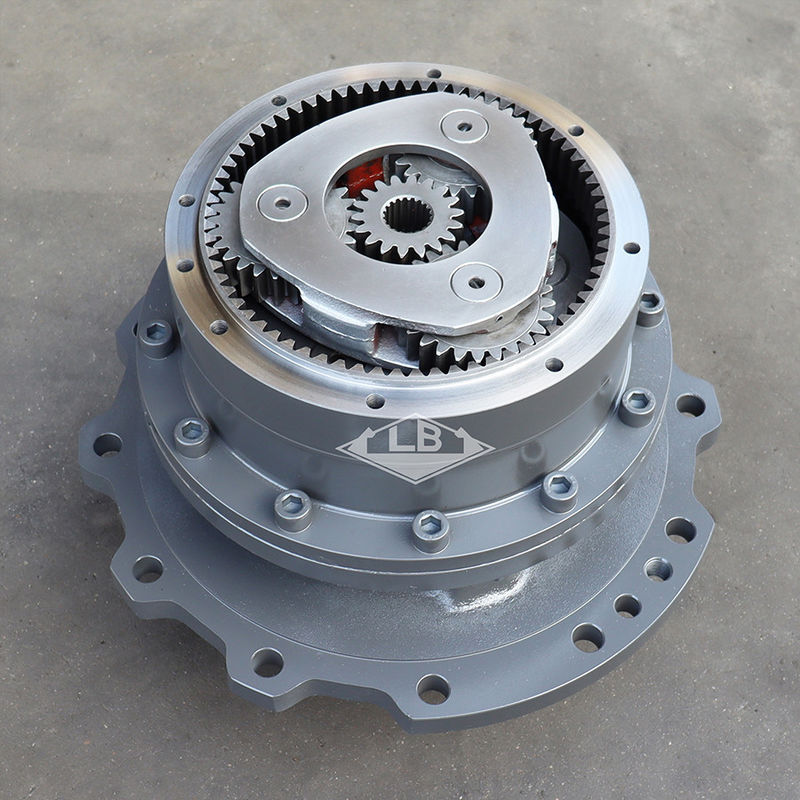

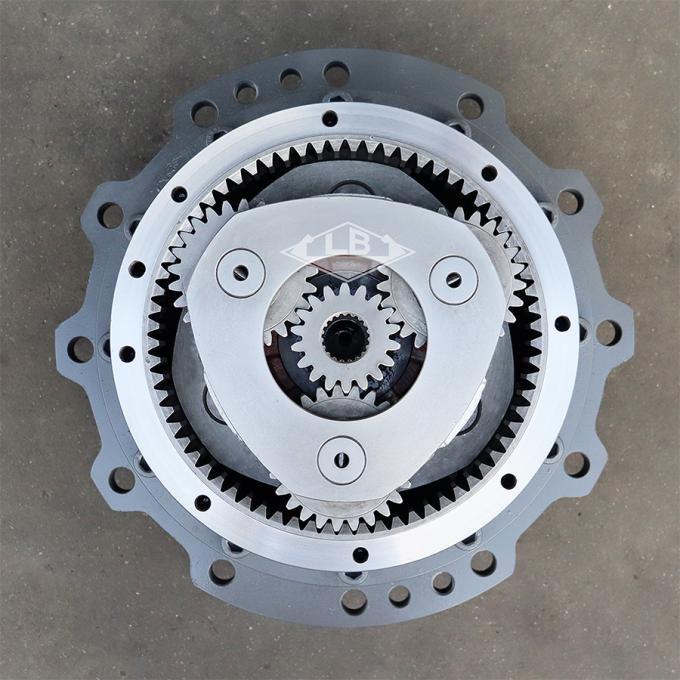

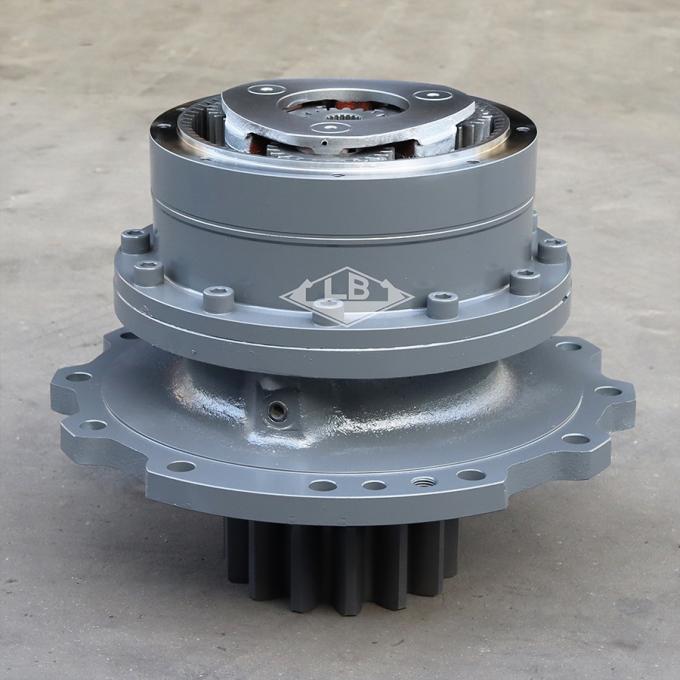

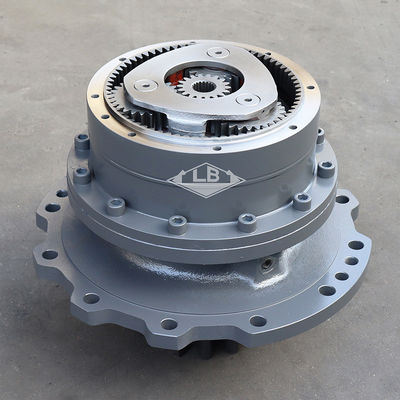

9243323 9258608 ZX240-3 SWING GEARBOX ZX240-3 ZX250-3 SWING DEVICE
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 9243323 excavator swing gear box,9258608 ZX240-3 excavator swing gear box,ZX250-3 SWING DEVICE |
||
|---|---|---|---|
Product Description
ZX240-3 ZX250-3 SWING DEVICE 9243323 9258608 ZX240-3 SWING GEARBOX
PRODUCT PARAMETERS
| Part name | ZX240-3 ZX250-3 swing gearbox | |||||
| Equipment | Apply to HITACHI EXCAVATOR | |||||
| Part no. | 9243323 9258608 | |||||
| NO.1 sun gear spline teeth | 19 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 240 KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group T.MISSION (SWING):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9243323 | [1] | T.MISSION (SWING) | I 9258608 <for assembly of machine> | |
| (9258608) | [1] | T.MISSION (SWING) | <for transportation> | |
| 00. | 1033257 | [1] | HOUSING | |
| 01. | 2051711 | [1] | SHAFT;PROP. | |
| 02. | 3085038 | [1] | SLEEVE | |
| 03. | A811130 | [1] | O-RING | |
| 04. | 4417903 | [1] | BRG.;ROL. | |
| 05. | 4417906 | [1] | SEAL;OIL | |
| 07. | 4417904 | [1] | BRG.;ROL. | |
| 08. | 3103179 | [1] | NUT | |
| 09. | 4474191 | [1] | PLATE;LOCK | |
| 10. | J901016 | [2] | BOLT | |
| 11. | 1032202 | [1] | CARRIER | |
| 12. | 4194454 | [1] | PLATE;THRUST | |
| 13. | 4488904 | [3] | PIN | |
| 14. | 3101724 | [3] | GEAR;PLANETARY | |
| 15. | 4438593 | [6] | BRG.;NEEDLE | |
| 16. | 4336929 | [3] | PLATE;THRUST | |
| 17. | 4027427 | [3] | PIN;SPRING | |
| 18. | 3084656 | [1] | GEAR;SUN | |
| 20. | 1032203 | [1] | GEAR;RING | |
| 21. | M341840 | [12] | BOLT;SOCKET | |
| 23. | 1026812 | [1] | CARRIER | |
| 24. | 4187590 | [1] | PLATE;THRUST | |
| 25. | 4341941 | [3] | PIN | |
| 26. | 3084652 | [3] | GEAR;PLANETARY | |
| 27. | 4354748 | [3] | BRG.;NEEDLE | |
| 28. | 4347635 | [3] | PLATE;THRUST | |
| 29. | 4144018 | [3] | PIN;SPRING | |
| 31. | 3084649 | [1] | GEAR;SUN | |
| 33. | 3088126 | [1] | PIPE | |
| 34. | 4445354 | [2] | PLUG | |
| 36. | 94-2012 | [1] | PLUG | |
| 37. | +++++++ | [1] | NAME-PLATE | |
| 38. | M492564 | [2] | SCREW;DRIVE |
