Product Details:

Get Best Price Contact Now

Detail Information
Highlight:

208-26-00211 Swing Gearbox

,

208-26-00210 Swing Gearbox

,

208-26-00220

Product Description

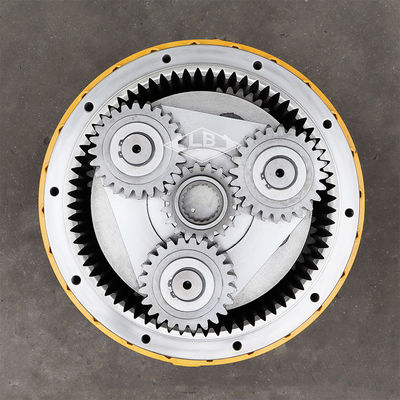

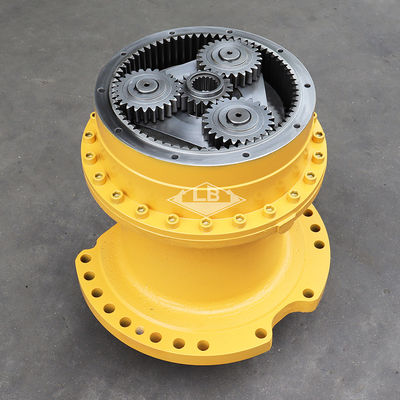

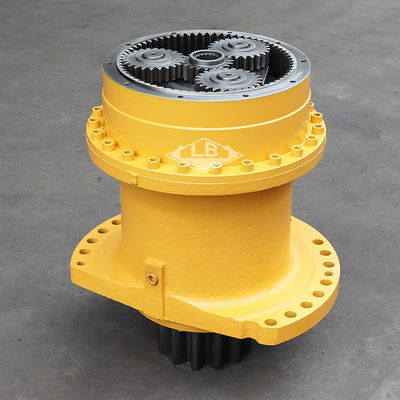

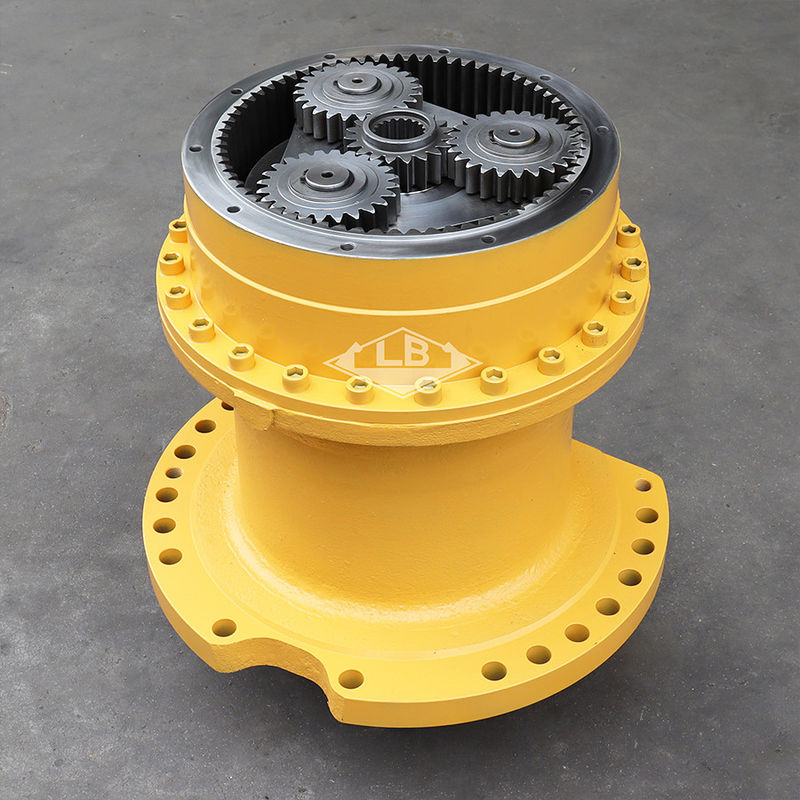

PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY 208-26-00211 208-26-00210 208-26-00220 PC400-7 SWING GEARBOX



PRODUCT PARAMETERS
Part name PC400-7 PC400-8 PC450-7 PC450-8 Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 208-26-00211 208-26-00210 208-26-00220
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 440 KG
MOQ 1 pc


Product Description

208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY 0208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY 1

Parts on group :

208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY 2

Pos. Part No Qty Parts name Comments
    208-26-00220   [1]   SWING MACHINERY A. Komatsu 0.000 kg.
    ["SN: 50001-UP"] |$1.
   1.   208-26-71190   [1]   CASE Komatsu 172 kg.
    ["SN: 50001-UP"]
   2.   07049-02430   [2]   PLUG Komatsu 0.003 kg.
    ["SN: 50001-UP"]
   3.   06000-23124   [1]   BEARING Komatsu 7.867 kg.
    ["SN: 50001-UP"]
   4.   06000-22326   [1]   BEARING Komatsu China 27.94 kg.
    ["SN: 50001-UP"]
   5.   208-26-52242   [1]   SHAFT Komatsu 75.5 kg.
    ["SN: 50001-UP"]
   6.   208-26-61310   [1]   OIL SEAL Komatsu 0.5 kg.
    ["SN: 50001-UP"]
   7.   208-26-71360   [1]   COVER Komatsu 7.9 kg.
    ["SN: 50001-UP"]
   8.   01010-81030   [12]   BOLT Komatsu OEM 0.03 kg.
    ["SN: 50001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
   9.   01643-31032   [12]   WASHER Komatsu 0.054 kg.
    ["SN: 50001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
   10.   07000-55390   [1]   O-RING Komatsu 0.041 kg.
    ["SN: 50001-UP"] analogs:["0700045390"]
   11.   208-26-71181   [1]   CARRIER Komatsu 19 kg.
    ["SN: 50001-UP"] analogs:["2082671180"]
   12.   208-26-71140   [4]   GEAR Komatsu 4.72 kg.
    ["SN: 50001-UP"]
   13.   207-27-61230   [4]   BEARING Komatsu 0.65 kg.
    ["SN: 50001-UP"]
   14.   20Y-27-21250   [8]   WASHER Komatsu China 0.03 kg.
    ["SN: 50001-UP"]
   15.   207-27-61250   [4]   PIN Komatsu China 1.75 kg.
    ["SN: 50001-UP"]
   16.   20Y-27-21290   [4]   PIN Komatsu OEM 0.03 kg.
    ["SN: 50001-UP"]
   17.   208-26-71230   [1]   PLATE Komatsu China
    ["SN: 50001-UP"]
   18.   205-32-51211   [1]   BOLT Komatsu 0.17 kg.
    ["SN: 50001-UP"]
   19.   208-26-71150   [1]   GEAR Komatsu 57.14 kg.
    ["SN: 50001-UP"]
   20.   01010-81645   [24]   BOLT Komatsu China 0.104 kg.
    ["SN: 50001-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
   21.   01643-31645   [24]   WASHER Komatsu 0.072 kg.
    ["SN: 50001-UP"] analogs:["802170005", "0164301645"]
   22.   208-26-71130   [1]   GEAR Komatsu 5.1 kg.
    ["SN: 50001-UP"]
   23.   208-26-71241   [1]   PLATE Komatsu 0.06 kg.
    ["SN: 50001-UP"]
   24.   208-26-71170   [1]   CARRIER Komatsu 7.65 kg.
    ["SN: 50001-UP"]
   25.   207-26-71520   [3]   GEAR Komatsu 2 kg.
    ["SN: 50001-UP"]
   26.   22U-26-21470   [3]   BEARING Komatsu 0.23 kg.
    ["SN: 50001-UP"]
   27.   22U-26-21240   [6]   WASHER Komatsu 0.6 kg.
    ["SN: 50001-UP"]
   28.   207-26-71210   [3]   PIN Komatsu 0.66 kg.
    ["SN: 50001-UP"]
   29.   04064-04018   [6]   RING Komatsu 0.001 kg.
    ["SN: 50001-UP"] analogs:["802250040"]
   30.   208-26-71210   [1]   HOLDER Komatsu 0.42 kg.
    ["SN: 50001-UP"]
   31.   04260-01270   [1]   BALL Komatsu OEM 0.009 kg.
    ["SN: 50001-UP"]
   32.   207-26-71510   [1]   GEAR Komatsu OEM 1.52 kg.
    ["SN: 50001-UP"]
   33.   207-26-71261   [1]   PLATE Komatsu OEM 0.15 kg.
    ["SN: 50001-UP"]
   34.   207-26-71610   [1]   COVER Komatsu China
    ["SN: 50001-UP"]
   35.   01010-81240   [10]   BOLT Komatsu 0.052 kg.
    ["SN: 50001-UP"] analogs:["801015573", "0101051240"]
   36.   01643-31232   [10]   WASHER Komatsu 0.027 kg.
    ["SN: 50001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
   37.   07042-30617   [2]   PLUG Komatsu China
    ["SN: 50001-UP"]
   38.   07042-30108   [1]   PLUG Komatsu 0.008 kg.
    ["SN: 50001-UP"] analogs:["0704220108"]
